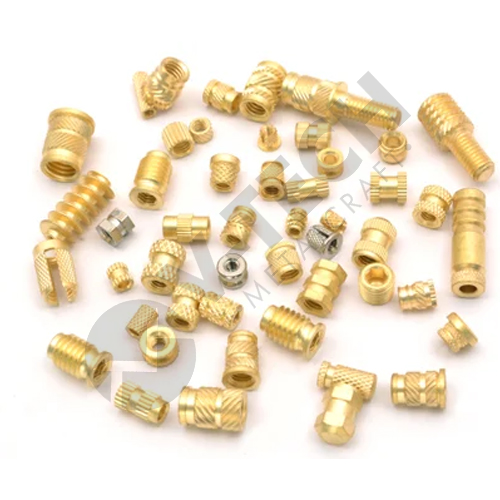

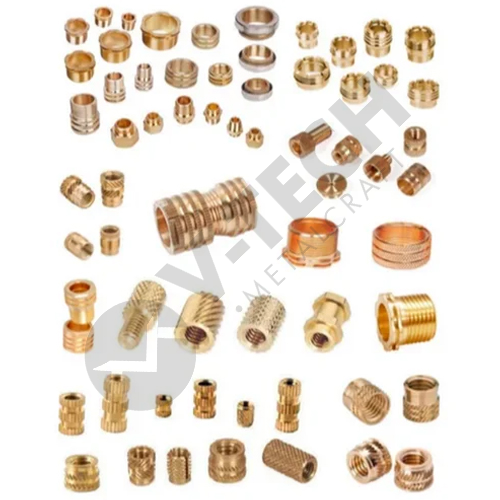

The wide range of Molding Inserts include threaded molding inserts, ultrasonic molding inserts, knurled molding inserts, molding inserts for plastic, wood molding inserts and more. The range of standard and high-quality molding inserts designed to molded into the plastic, wood or any molded components. As compared to installing inserts into a plastic part in a post molding process, the use of molding inserts eliminates the need of further installation and reduce costs. Molding Inserts are available with high strength threads. They are widely used in thermoset plastics, molding inserts are designed to place into the mold cavity prior to plastic injection.

Special Features of Brass Inserts :

» Threads as per International Go & Not Go Standards.
» Deep Groove for maximum Pull Out Resistance.
» Inner Diameter (I/D) after Threads with very close tolerance to prevent unnecessary flush to enter into the brass inserts.
» Knurling Available: » Diamond » Straight » Unidirectional » Both blind and through brass inserts are available with no minimum Qty.

Also Available:

Brass Round Knurled Inserts
Brass Hexagonal Inserts
Brass Square Inserts

Material :

» Free Cutting Brass IS 319 Type (I) or BS 249 Type (I) or High Grade
» Any Special Brass Material Composition as per customers requirement

Threads :

» ISO Metric (MM Threads)
» BA, BSW (Inches), UNC, UNF or
» Any as per custom design

Length / Size :

Begins from M2 or equivalent threads and up to any size as per custom design or requirement

Finish And Coating :

Natural, Nickle Plated, Tin Plated brass inserts or any coating as per customer specification.
